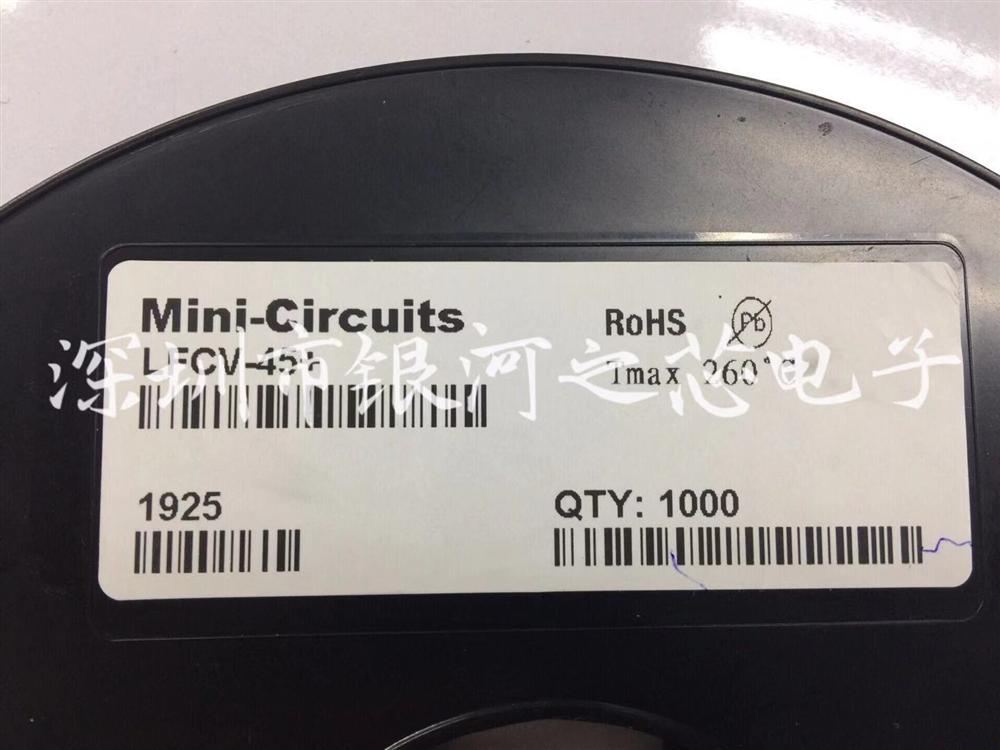

LFCV-45+ Low Pass Filter 50Ω DC to 45 MHz
Features
• excellent power handling, 8.5W
• small size
• 7 sections
• temperature stable
• hermetically sealed
• protected by U.S. Patent 6,943,646
Applications
• harmonic rejection
• VHF/UHF transmitters/receivers
• anti-aliasing for A/D converter
Maximum Ratings
Operating Temperature -55°C to 100°C
Storage Temperature -55°C to 100°C
RF Power Input* 8.5W max. at 25°C
* Passband rating, derate linearly to 3.5W at 100°C ambient.
Permanent damage may occur if any of these limits are exceeded.
The Big Deal:
• Small size 3.2mm x 2.5 mm
• High Power handling (8W)
• High rejection (50 dB typ)
• Ceramic construction
Product Overview: New Low Pass Filter LFCV-45+ is an LTCC based 7 section design, that extends the lower frequency cutoff range of the existing LFCN series to 45 MHz. Systems that previously relied on active or lumped element filtering to support these lower frequencies can save power and system complexity by integrating the LFCV-45+ into new designs. These filters are offered in a EIA 1210 package size and have a typical stop band rejection of 50 dB.
